VERTICAL PLATFORM LIFT
Vertical platform lift is hydraulic system lift platform for wheelchair lifting. It’s short name is vpl lift. We also name it as hydraulic small home lift, porch lift, and platform lift for home etc. With featured safety devices, Himor indoor and outdoor lifts are popular for home use wheelchair lifting and elder people lifting. People can control the lift from inside panel, outside column and remote control. We design this lift to be closed cabin. People can install this lift outside the house, inside the house, and get through floor holes etc. With CE and ISO certification, our lifts are popular in the United States, Philippines, Poland, Netherlands, Nigeria, Australia, Thailand, Bulgaria, UAE, Bahrain, Romania and so on. Other questions, please refer to the bottom FAQs in this page.
- System: Hydraulic
- Drive tower material: Aluminum alloy plate
- Cabin material: Aluminum alloy and toughened glass

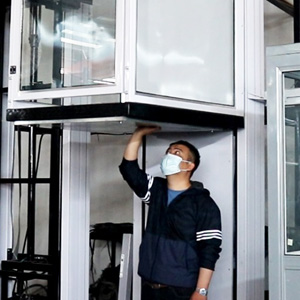

- Safety: Safety sensor board, Anti-drop device, Sfety interlocks, Safety valves.
- Usage: Both indoor and outdoor
- Access: Get through, Opposite, or 90 degree
- Capacity: 250kg-300kg
- Lifting height: 1m-15m(customize according to site)
- Cabin size: 1430mm*1000mm
- Install space: 1500mm*1350mm
- Installation: On ground directly, or dig a pit.
- Soundless motor for best lifting experience
- Accept customization for heights and cabin sizes
- Prices: from USD3,000~USD15,000. Depending on heights and specs.

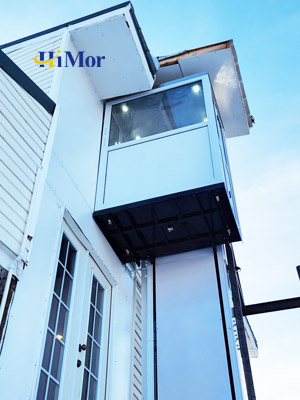

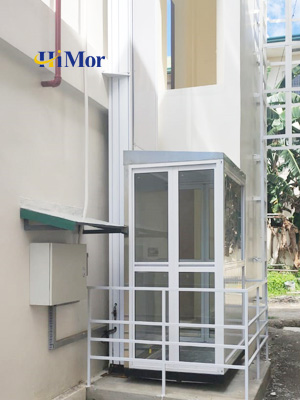

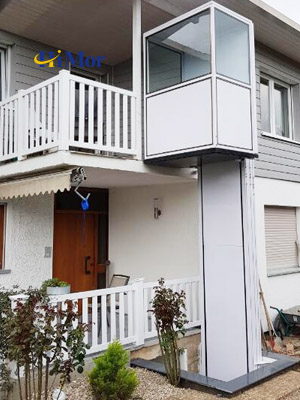

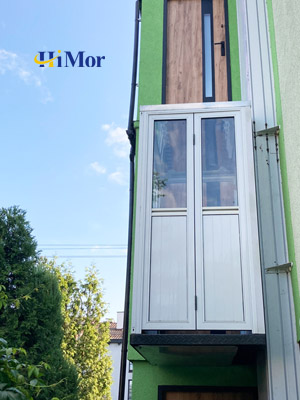

Outdoor Vertical Platform Lift for Home Projects and Reference Models
|
Model
|
Lifting Height
|
Capacity
|
Cabin Size
|
Cabin type
|
Voltage
|
|---|---|---|---|---|---|
|
HVLF-1
|
1.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-2
|
2.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-3
|
3.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-4
|
4.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-5
|
5.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-6
|
6.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-7
|
7.0m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
HVLF-10
|
10m
|
250kg
|
1000*1430mm
|
Full and Closed
|
110V/220V, Single Phase
|
|
Other height, capacity, cabin size can be customized as per your request.
|
|||||
What We Do To Make Qualified Residentical Vertical Lift?
- Drive tower material: Aluminum Alloy

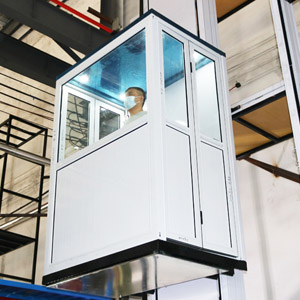

- Cabin type: Half or Full.

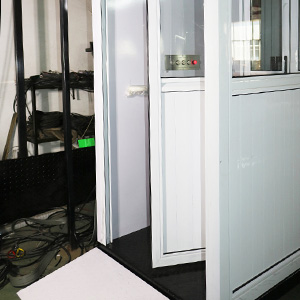

- Cabin doors: With doors on access sides.
- Material: Aluminum alloy

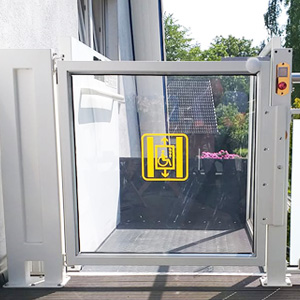

- Landing doors: Optional

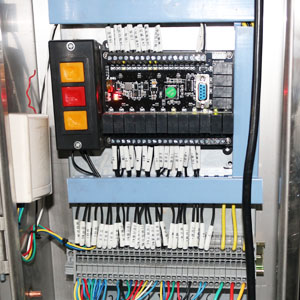

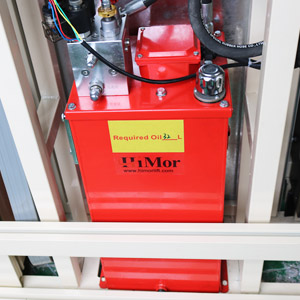

- Control system: PLC control system. Silent hydraulic motor
- Controllers: control panel inner cabin, calling column outside, remote controller
- Working temperature: -20°C—60°C.
- Application: Indoor and outdoor

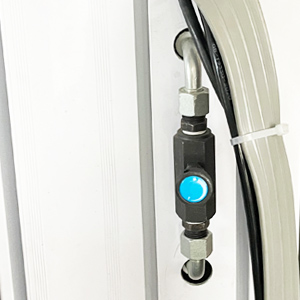

- Safety devices: Emergency stop, safety sensor under cabin, manual decline after power cut, anti-drop device, and sefaty valves etc.
Vertical Platform Lift for home Working video
After Service Support
Exterior Closed Platform lift FAQ
Yes. This vertical lift platform needs to fix the drive tower with wall or floors, and fix the bottom with concreted ground. We will give all the installation use steel plates and bolts for this lift.
- Alulminum alloy plate with glass
- Full glass with aluminum alloy frame
- Full glass with tainless steel frame
- Exact lifting height, and how many stops including ground stop.
- Installation space for the lift.
There are 3 control methods:

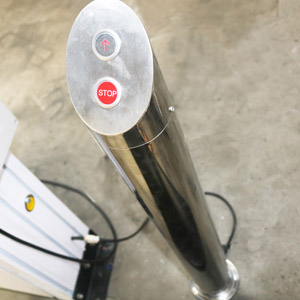

- Control column outside, fixing on each floor.

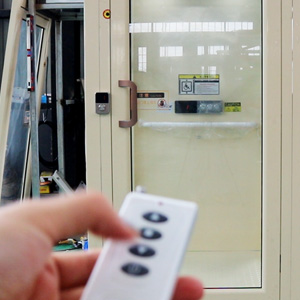

- Remote controllers

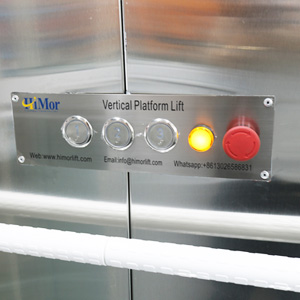

- Inside control panel
After knowing the cabin lifting height you need, we will make design and start order with you. Himor also can arrange shipment to your nearest sea port.
We accept T/T, Paypal, Credit card, and L/C payment methods.
- Himor provides 3 years warranty fot the lift structure and 1 year warranty for electrical components.
- Himor provids detailed installation manual and user manual for each lift. We also help with installation by online assistance.
- We also provide whole life time free consult for the lift issue.
