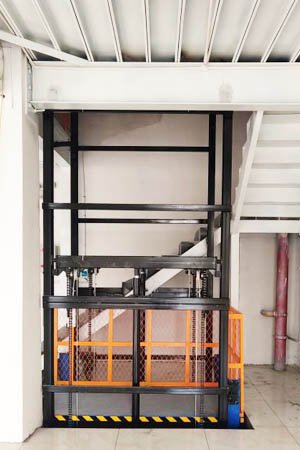

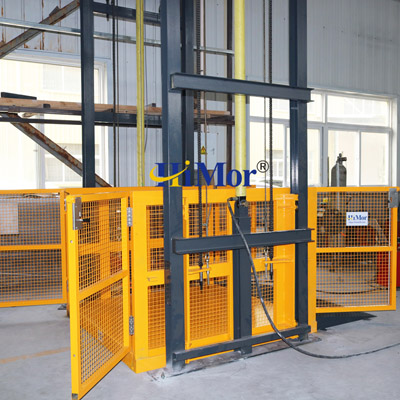

CARGO ELEVATOR
Cargo elevator is heavy duty hydraulic cargo lift elevator for mezzanines and floors goods lifting with hydraulic system and steel structure. It’s application is large for both industrial and residential lift platform for goods or pallet lifting. Himor designs indoor and outdoor fixed warehouse hydraulic cargo lift elevator for home, warehouse, shops, plants, and mezzanine etc. 2D or 3D lift drawing will be available for clients to confirm the finalized mezzanine lift design.
If a traction cargo elevator costs too much for you, or if you do not have a shaft for a traction elevator, you can choose Himor Hydraulic Cargo Elevator. Other questions, please refer to FAQs on the page bottom.
- Height: Suggest 1m-20m (3ft-65ft)
- Applications: Shops, Homes, Plants, Warehouses etc.
- Elevator Capacity: 1000kg, 2000kg, 3000kg-10ton customization
- Platform size: smaller than 10m
- Hydraulic Elevator dimension: Customized according to site
- Opening direction: Single side/Opposite/Adjacent openings
- 2D&3D drawing provided
- Hydraulic system
- Floors: from 2 floors to 6 floors, depending on height
- Multi-layers waterproof controllers
- CE certificated
- Cargo Elevator Price: From USD2,000~USD20,000. Depending on sizes.
Industrial Hydraulic Cargo Elevators Sample Models
|
Model
|
Lifting Height
|
Capacity
|
Platform Size
|
Lead Rails
|
|---|---|---|---|---|
|
HGL0.5-3.5
|
3.5m
|
500kg
|
1.8m*1.8m
|
Two Sides
|
|
HGL1-4.5
|
4.5m
|
1000kg
|
1.8m*2.0m
|
Two Sides
|
|
HGL1.5-6
|
6m
|
1500kg
|
2.5m*2.5m
|
Two Sides
|
|
HGL2-4
|
4m
|
2000kg
|
2.0m*2.5m
|
Two Sides
|
|
HGL3-7
|
7m
|
3000kg
|
2.0m*3.0m
|
Two Sides
|
|
HGL2-13.8
|
13.8m
|
2000kg
|
2.0m*2.0m
|
Two Sides
|
|
HGL1-17
|
17m
|
1000kg
|
2.0m*4.0m
|
Two Sides
|
|
Other height, capacity, platform size, and opening direction can be customized as per your request.
|
||||
Hydraulic Cargo Elevator Structure Diagram
- Work platform: The bottom of the table is paved with steel profiles, and the top is paved with anti-skid plates. The table is surrounded by guardrails made of steel pipes and doors for goods to enter and exit.
- Doors on enclosure: With interlocks only when the doors are closed the lift can work.
- Hydraulic cylinders: Strong wear-resistant hydraulic cylinder with explosion-proof valve.
- Lead rails: National standard H type steel with numbers from 125# to 150# according to the lift capacity and travel heights.
- Chain and Steel wire rope: The lifts have steel wire ropes and leaf chains to hold on the work platform.
- Fix plates: To fix the lead rails onto ground. Use bolts and welding.
- Pump station: Hydraulic pump unit with all safety valves. Silent pump unit is available as an option.
- Digital control panels: Each floor has one digital control panel with emergency stop button.
How To Install Hydraulic Cargo Elevator Lift?
Indoor Industrial Cargo Elevator Lift Video
Strong Performance Steel Leadrails
Work Platform With Locked Doors
Pair Plug Cable
Cargo Elevator Safety Marks
Srapy plastic for each part of the lift
Anti-skid Steel Plate Platform
Chain With Galvanized Wheels
Packing For Each Lift Part
First Class Limit Switches
Steel Ropes For Safety
Digital Control Panels
Galvanized Bolts for Installation
- 4m 2 stops
- 1000kg
- Client from the United States
- 5m 2 stops
- 8000kg
- Client from Ecuador
- 6.2m 3 stops
- 1000kg
- Client from Germany
- 4m 2 stops
- 1000kg
- Client from the Philippines
- 4.5m 2 stops
- 2000kg
- Client from UAE
Indoor and Outdoor Cargo Elevator FAQ
How to install hydraulic cargo elevator?
Yes. This type hydraulic cargo elevator needs to fix with ground and wall. Only needs to fix the lead rail with wall and ground. And fix the chain onto platform. All the electric components are plug type for easy installation. We will provide detailed installation instruction. Below is the main catalog of installation steps.
- Overlooking of Himor Goods Lift after installed
- Notices are very important
- Vertical and Assemble lead rail
- Assemblethe platform
- Chain and wire rope on lead rails connect with platform
- Vertical and fix
- Fix and adjust limit switches(for the lifting height)
- Connect pump station and control cabinet
- Connect oil tubes between cylinder and pump station.
- Add hydraulic oil into the pump station
- No-load test and debugging for the goods lift.
Can a cargo lift be installed outdoor?
Yes. If there isn’t a shaft indoor, or the indoor space is limited, you can install a lift outdoor. Because:
- Guide rail cargo lift do not have to be installed in a steel shaft or concreted shaft. It can be fixed besided a wall or steel structure.
- Himor does very good job for the lifts’ surface painting to be spray plastic and do deep shot blasting for the inner steel surface. These steps are beneficial for enabling the machine to be used outdoors.
- Himor does very good jobs for electric cabinet protection. The cabinet covered the inside electric components very well. Also we can make a cover box for the hydraulic pump station.
How to buy lift from Himor Lift in China?
After knowing the cargo elevator lifting height, platform size and capacity you need, we will make design and start order with you. Himor also can arrange shipment to your nearest sea port.
We accept T/T, Paypal, Credit card, and L/C payment methods.
How much does hydraulic cargo lift cost?
A hydraulic cargo lift costs around USD2,000-USD20,000 per unit. The price is determined by below factors:
- Hydraulic cargo lift platform travel height. Higher it goes up, the cost is higher. Normally the hydraulic lift platforms can goes up to lower than 20m, which is around 6 floors.
- Load capacity. This types mezzanine goods lift’s capacity is from 500kg to around 10tons. So the prices will be higher if the capacity is bigger.
- Platform size. The platform size is customized according to the cargo
What is the after-service of the lifts?
- Himor provides 3 years warranty fot the lift structure and 1 year warranty for electrical components.
- Himor provids detailed installation manual and user manual for each lift. We also help with installation by online assistance.
- We also provide whole life time free consult for the lift issue.
What are the optional configurations?
- Safety enclosure outside the lift, including wire mesh, color steel tile and steel sheet etc.
- Landing doors, including roller shutter doors, wire mesh doors, center open accordion doors, and vertical lift up doors etc.
- Soundless motor. More suitable for indoor application like shops.
- Anti-drop device. If the capacity is beyond 3ton, we can add anti-drop device for more safety consideration.
What are the differences between hydraulic cargo elevator and other elevtors?
- Please read this article: 10 Differences between hydraulic cargo lift elevator and passenger lift
Get A Quote Now
After Service Support
- 24 months warranty for steel structure material, apart from man made faults.
- 12 months warranty for electric & hydraulic system.
- 7*12 hours online/telephone/email technical consultation.
- Lifetime free technical consultation.
- Free spare parts for one years period.
- Shipping arrangement
How to Buy and Customize Cargo Elevators from Himor?
Tell our sales team your requests like below
CAPACITY REQUIRED?
We customize from 200kg to 20ton.
LIFTING HEIGHT REQUIRED?
We customize from 1m to 20m.
PLATFORM SIZE REQUIRED?
We customize from 1m to 10m platform size.
ENCLOSURE REQUIRED?
We customize enclosure of material wire mesh, and others you need.
