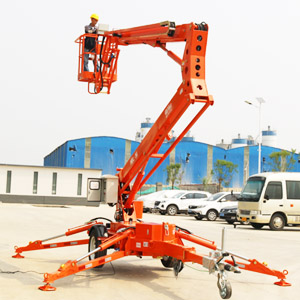

TOWABLE BOOM LIFT

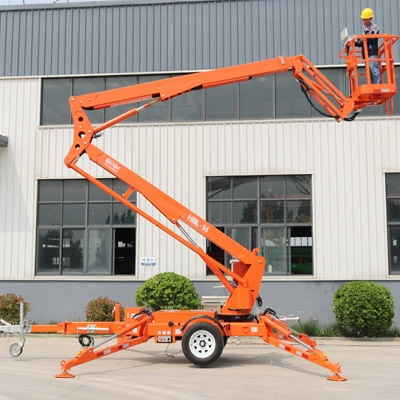

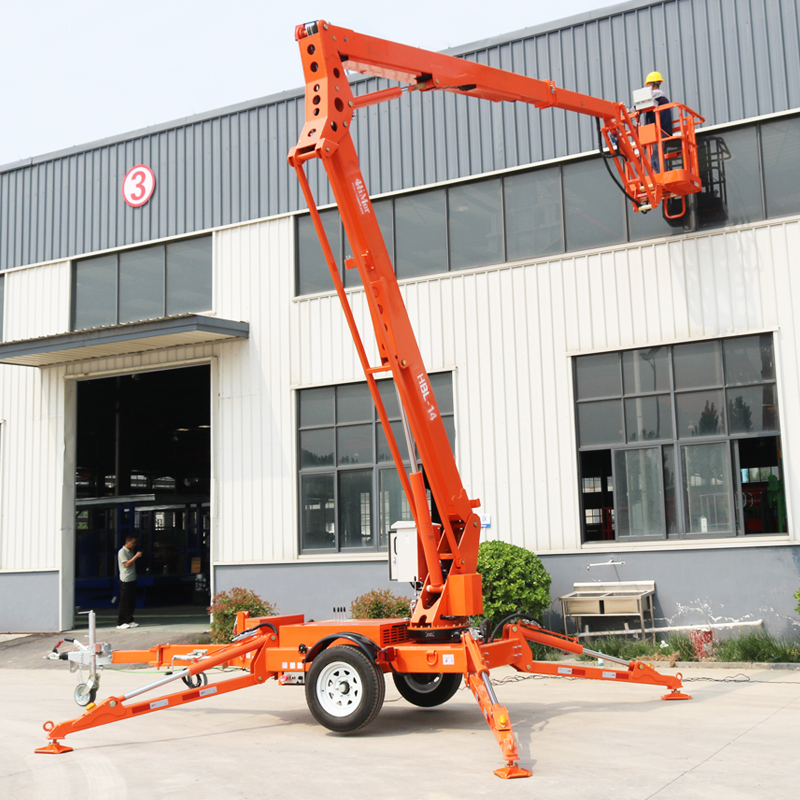

A towable boom lift is a trailer-mounted aerial work platform designed to provide safe access to elevated work areas. It can be towed by a truck or vehicle and stabilized on-site using hydraulic leveling outriggers. Towable boom lifts are commonly used for outdoor applications such as streetlight maintenance, construction work, tree trimming, signage installation, and painting.
Himor is a professional towable boom lift manufacturer, offering CE-certified models with working heights from 10m to 22m, multiple power options, and optional self-drive systems.
Towable Boom Lift Specifications
- Movement: Manual and tow(self-propelled is for optional)
- CE standard
- Capacity: 200kg
- Power Choises: AC, Battery, Diesel, or Hybrid powers.
- Over 360 degree rotation
- Model heights: 10m-22m
- Outriggers: Hydraulic leveling outriggers
- Wheels: 4 inflatable tyres
- Trailer with brake system
- Horizontal leveling detector
- Working lighting and tail lighting
- Crawler type: optional.
- Color: Yellow, Blue, Black, Gray or customize
- Prices: around USD9,000~USD20,000. Depending on heights and specs.
Tow behind Boom Lift Customer Feedback
Towable Boom Lift Specifications by Model
|
Model
|
HBL-10
|
HBL-12
|
HBL-14
|
HBL-16
|
HBL-18
|
HBL-20
|
|---|---|---|---|---|---|---|
|
Max. Platform Height
|
10m(33ft)
|
12m(39ft)
|
14m(46ft)
|
16m(52ft6in)
|
18m(59ft)
|
20m(65ft6in)
|
|
Max. Working Height
|
12m(39ft)
|
14m(46ft)
|
16m(52ft6in)
|
18m(59ft)
|
20m(65ft6in)
|
22m(72ft)
|
|
Horizontal Working Radius
|
5.5m(18ft)
|
6.5m(21ft)
|
8.5m(28ft)
|
10.5m(34ft5in)
|
11m(36ft)
|
11m(36ft)
|
|
Platform Capacity
|
200kg(440lb)
|
200kg(440lb)
|
200kg(440lb)
|
200kg(440lb)
|
200kg(440lb)
|
200kg(440lb)
|
|
Platform Size(m)
|
0.9*0.7*1.0
|
0.9*0.7*1.0
|
0.9*0.7*1.0
|
0.9*0.7*1.0
|
0.9*0.7*1.0
|
0.9*0.7*1.0
|
|
Lift Dimension(m)
|
5.4*1.6*1.9
|
5.8*1.8*2.2
|
6.5*1.6*2.1
|
7*1.8*2.25
|
7.2*1.8*2.3
|
7.5*1.8*2.5
|
|
Self Weight(kg)
|
1950
|
2100
|
2200
|
2600
|
2700
|
3500
|
|
Boom Rotation
|
Over 360 degree
|
|||||
|
Wind resistance
|
Max. 5 degree wind resistance
|
|||||
|
Packing in Container
|
3 sets in one 40ft container
|
|||||
|
Color choices
|
Orange, Black, Gray, Blue or others customization
|
|||||
Work platform with controller.

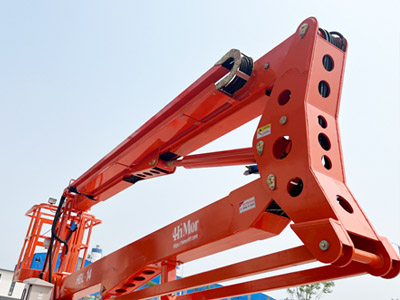

Strong performance boom

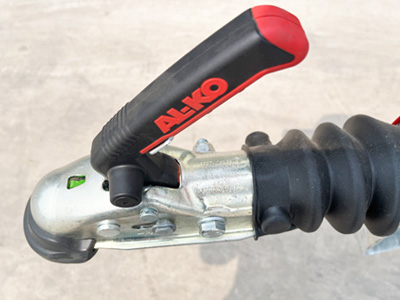

EU brand trailing bar
LCD ground controller

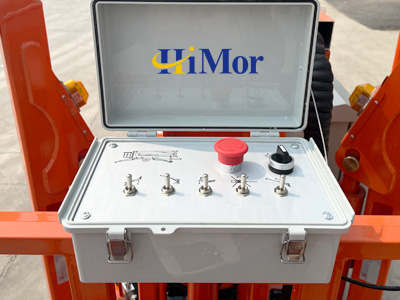

Work platform controller
Outriggers with hydraulic lock

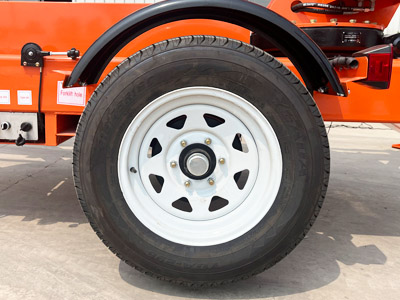

Inflatable tires
Steady lift base

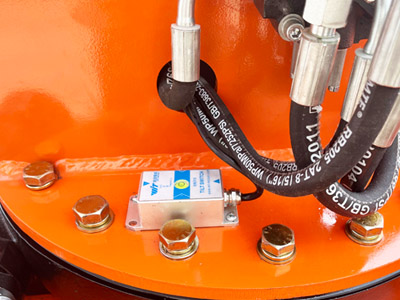

Tilt sensor for safety

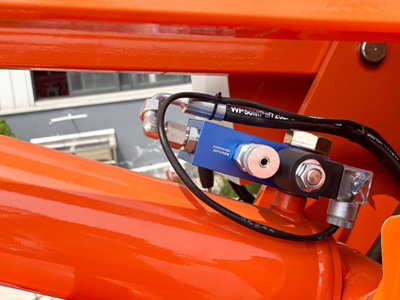

All valves for safety

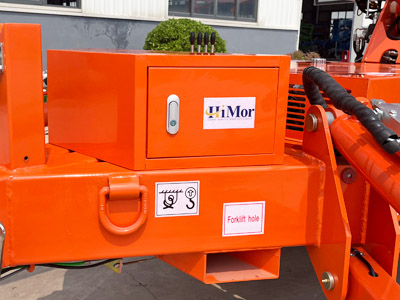

Tool box and lifting holes

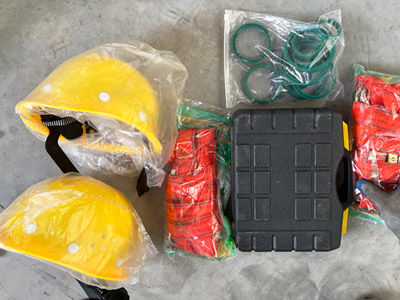

Spare parts
Towable Boom Lift Working video
After Service Support
- 2 years warranty for steel structure material, apart from man made faults.
- 12 months warranty for electric & hydraulic system.
- 7*12 hours online/telephone/email technical consultation.
- Lifetime free technical consultation.
- Free spare parts for one years period.
- Shipping arrangement
Trailer boom lift self drive video
Self drive device
- Assist movement by remote controller
- Can move forward, backward and turn around.
- The device powered by battery.
- Can add to all heights boom lifts.
Trailer Mounted Boom Lift Production Process All-round Display
Trailer mounted boom lift FAQ
Can this towable boom lift self move?
This Towable boom lift is manual trailing move for standard models. We can add assist move device to realize semi-walking. People only need to guide the direction.
What power resources of this trailer boom lift do you use?
Our standard power is AC. And other optional power resources like Battery, Diesel and Gasoline are all acceptable.
How to buy boom lift from Himor?
After knowing the model you need, we will quote to you and start order with you after negotiation. We accept T/T, Paypal, Credit card, and L/C payment methods.
Himor also can arrange shipment to your nearest sea port.
Himor brand boom lifts are for sale now.
How many days needed for design and production?
Normally need 20-30 days.
What Are the After-services?
- Himor provides 3 years warranty fot the lift structure and 1 year warranty for electrical components.
- We also provide whole life time free consult for the lift issue.
How to operate towable boom lift?
Please refer to this detailed article: How to use Himor towable boom lift for tree work?
