SMALL GOODS LIFT
Small goods lift is small capacity hydraulic goods lift, which capacity is normally lower than 1000kg and only single side lead rails. Himor lift is China famous brand for hydraulic lifts manufacturer and suppliers. We owe goods lift factory and workshops for design and production. It’s application is large for both industrial and residential mini lift platform. We can apply such hydraulic goods lifts for shops, homes, warehouses, plants, workshops etc to carry goods or pallets to upper floors. Also our design is suitable for both indoor and outdoor installation. Any other questions, please refer to the FAQs on the bottom of this page.
- Height: 1m-24m (3ft-78ft)
- Small goods lift Capacity: under 1000kg (2200bl)
- Platform size: smaller than 1.5m*1.5m (5ft*5ft)
- Installation: Both indoor or outdoor.
- Silent Motor
- Opening direction: Single side/Opposite/Adjacent openings
- 3D drawing provided
- Hydraulic system
- Multi-layers waterproof controllers
- Pit Free & install on concreted ground
- Ramp available
- All sizes customization.
- All colors customization.
- Accept OEM ODM.
- CE certification
- Goods lift Prices: from USD2,000~USD10,000. Depending on sizes.

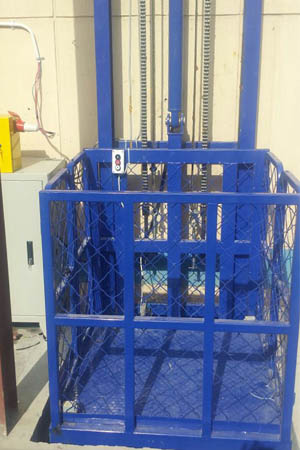

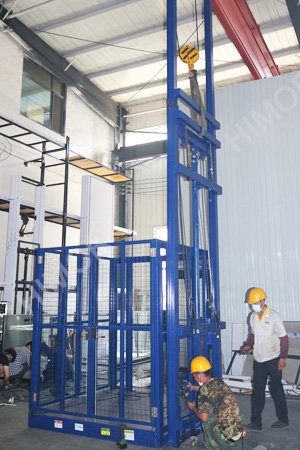

Small Lifts for Goods Photos and Reference Models
|
Model
|
Lifting Height
|
Capacity
|
Platform Size
|
Lead Rails
|
|---|---|---|---|---|
|
HGL0.5-3.5
|
3.5m
|
500kg
|
1.8m*1.8m
|
One Side
|
|
HGL1-4.5
|
4.5m
|
1000kg
|
1.3m*1.3m
|
One Side
|
|
HGL0.5-6
|
6m
|
500kg
|
1.5m*1.5m
|
One Side
|
|
HGL0.3-3
|
3m
|
300kg
|
1.3*1.3m
|
One Side
|
|
HGL0.5-7
|
7m
|
500kg
|
1.5m*1.5m
|
One Side
|
|
Other height, capacity, platform size, and opening direction can be customized as per your request.
|
||||
Hydraulic Cargo Elevator Structure Diagram
- Work platform: The bottom of the table is paved with steel profiles, and the top is paved with anti-skid plates. The table is surrounded by guardrails made of steel pipes and doors for goods to enter and exit.
- Doors on enclosure: With interlocks only when the doors are closed the lift can work.
- Hydraulic cylinders: Strong wear-resistant hydraulic cylinder with explosion-proof valve.
- Lead rails: National standard H type steel with numbers from 125# to 150# according to the lift capacity and travel heights.
- Chain and Steel wire rope: The lifts have steel wire ropes and leaf chains to hold on the work platform.
- Fix plates: To fix the lead rails onto ground. Use bolts and welding.
- Pump station: Hydraulic pump unit with all safety valves. Silent pump unit is available as an option.
- Digital control panels: Each floor has one digital control panel with emergency stop button.
- Ramp: If your site is not available for diging pit, then we will make a ramp for easier access.
Small Goods Lift Elevator Working video
Small Goods Lift Loading Test video
2D and 3D Free Design
Provide design drawings before production to fit every space of your sites.
Qualified Material and System
Choose high standard materials and silent hydraulic motor system.
Installation Manual and Guide
Video and written manuals for installation. Online guide anything you need.
Lifetime After-Services
Lifetime after services for the lift you purchased from Himor.
Strong Performance Steel Leadrails
Work Platform With Locked Doors
Pair Plug Cable for Small Goods Lift
Hydraulic Goods Lift Safety Marks
Srapy plastic for each part of the lift
Anti-skid Steel Plate Platform
Chain With Galvanized Wheels
Packing For Each Lift Part
First Class Limit Switches
Steel Ropes For Safety
Digital Control Panels
Galvanized Bolts for Installation
- 2.6m 2 stops
- 300kg capacity
- Customer from United States
- 5.6m 3 stops
- 500kg capacity
- Customer from the Philippines
- 2.7m 2 stops
- 500kg capacity
- Customer from Bulgaria
- 5.9m 3 stops
- 500kg capacity
- Customer from UAE
- 2.7m 2 stops
- 300kg capacity
- Customer from Australia
Small Goods Lift FAQ
How to install A small goods lift?
We will provided detailed installation manual for each lift we cusotmized. Clients just follow the manual to fix the lift with ground and walls or floors by the fix bolts we send to you.
As for the electric system, the plugs are pair type, you can insert both same plugs of the wires.
And hydraulic system is the pump station and oil tubes to contact with the cylinder.
Is this mini hydraulic goods lift free standing?
Yes. This lift can be installed without any shaft. It can be fixed aside the mezzanines or floors. As long as there are concreted or steel structure for the lift to fix with, the lift can be free standing firmly.
If there is shaft, the lift also can be go through that shaft, and the lift’s size will fit the shaft very well. Becuase we design the lift as per the site situation.
Is this lift safe for cargo lifting?
Himor Goods Lift Main Safety Rules:
- Equipped with all hydraulic system safety valves. These valves effectively regulate the hydraulic system to prevent damage to system components and equipment caused by excessive or insufficient pressure during operation. They provide functions such as lifting control, load holding, shock absorption, and safety protection.
- Equipped with double leaf chain and wire ropes to hold on the work platform.
- Equipped with emergency buttons on both controllers and electric cabinet. When meet any emergency, can stop it immediately.
- Equipped with guardrails and interlocked doors on platform. This can stop the cargo from drop down during lifting. And the interlocked doors needs to be full closed when lifting up and down.
How to buy a small goods elevator from China ?
- Confirm your request for this hydraulic goods lift, especially lifting height, capacity, and platform size.
- Contact a China based manufacturer like Himor lift.
- Follow the leads of Himor’s sales team. If you have import right, you can deal the import process by yourself. If you do not have import right, you can ask a import agent to purchase for you. Himor owns many agents in some countries, so you can contact if you need help for goods elevator import.
How to customize such a lift from Himor Lift?
- Measure site distance from 1st stop ground to other stops floor ground. Then mark each stop’s height including the final stop’s room height.
- Weigh the cargo that you want to lift. For example you want to lift up a pallet cargo, you weigh the pallet and cargo both.
- Check the cargo’s packing size. For example if the pallet is 1200mmX1200mm, then the clean platform size can be some larger like 1300mmX1300mm or more.
- Make sure you want to add wire mesh enclosure or not.
- It is necessary sending site photos to Himor team. We will make the lift design drawing to fit your site very well.
How to do hydraulic goods lift maintenance?
- After completing operations, the lift should be returned to the stopped state and the power supply disconnected.
- During equipment use, regularly check the wire rope and leveling rope for looseness and wear each month. If looseness or wear is found, tighten or replace them as soon as possible.
- Prevent rainwater corrosion. If outdoor installation, clean it dry after rain.
- This equipment should be operated and maintained by designated personnel.
- Regularly check the lubrication of the hinge parts and add lubricating oil in time to prevent friction.
- The pins should be lubricated frequently to maintain lubrication. Regularly check the bolt fixing points. If any are loose, tighten the bolts before normal use.
- For newly commissioned freight elevators, the hydraulic oil should be changed after the first 6 months of operation. Thereafter, the oil can be changed as needed based on operating conditions. Lubrication tools should be kept clean, and the oil pump suction screen should be cleaned regularly. Hydraulic oil should generally be changed every six months. If the using frequency is very often, user can change it every 3 months. Use N32 anti-wear hydraulic oil in winter and N46 anti-wear hydraulic oil in summer.
- If oil leakage is found in the hydraulic cylinder, the sealing ring should be replaced immediately.
- When replacing hydraulic components, the components should be thoroughly cleaned. For components that cannot be assembled immediately, the ports should be sealed to prevent collisions and debris from entering the hydraulic system.
- When cleaning hydraulic components, cotton or other fabrics that easily shed fibers must not be used.
- Daily check the switch of the lower and higher limit position no loose, damaged.
- Daily check the electrical lines no linking, bare.
