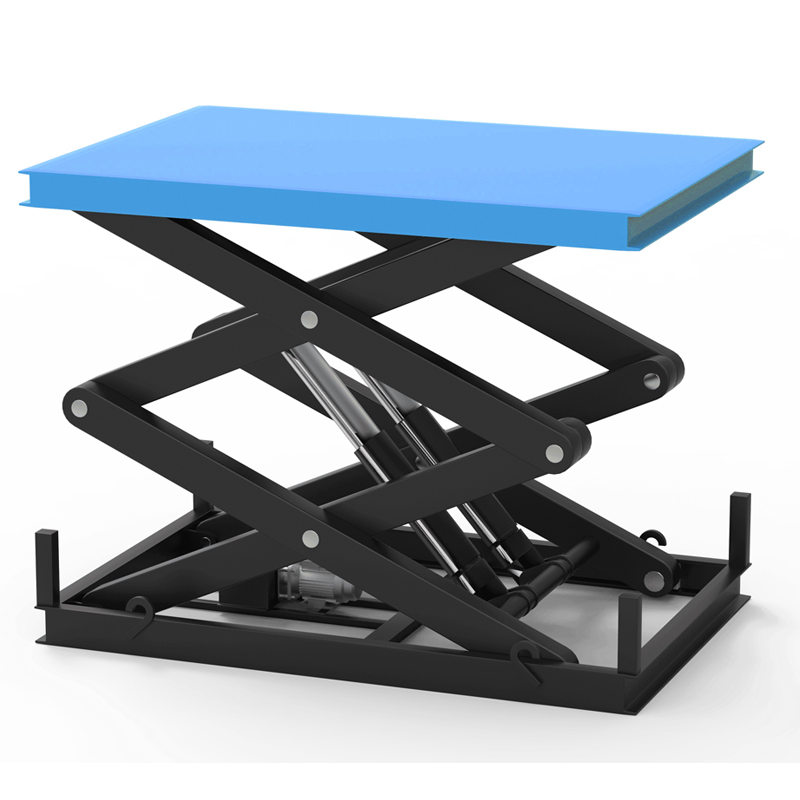

SCISSOR LIFT TABLE

For lifting heavy loads weighing several tons or even tens of tons, cargo scissor lift tables are extremely practical tools. They utilize a hydraulic power system, resulting in strong power, simple maintenance, and stable operation. Because of these advantages, many factories, workshops, warehouses, and docks choose fixed scissor lifts as their first choice.

During the operation of fixed scissor lifts, safety is always the most important aspect of production and a primary concern for all business owners and safety supervisors. Many safety accidents are caused by improper operation and substandard equipment. Himor Machinery, a hydraulic equipment manufacturer with twenty years of R&D and production experience, will explain how to use fixed scissor lifts safely from the following two perspectives:

Cargo scissor lift table safety rules:

1. Hydraulic System Safety Valves. All Himor Lift’sfixed scissor lifts are equipped with safety valves in their hydraulic systems. These valves effectively regulate the hydraulic system to prevent damage to system components and equipment caused by excessive or insufficient pressure during operation. They provide functions such as lifting control, load holding, shock absorption, and safety protection.
2. Safety trip bars are Installed on the Lower Edges of all four Sides of the w The scissor lift will automatically stop descending if anyone or any foreign object stands under the worktable. After the person or object has been removed, the descent will resume upon restarting the operation to prevent injury.
3. We suggest to install Guardrails on top of the If the load being lifted is too large or prone to falling, it is recommended to install guardrails around the worktable. Also we design the guardrails with interlocked doors. Only when the doors are fully closed, the lift can work up and down.
4. The electrical control box operates on 24V voltage, posing no risk of electric shock. Under normal circumstances, as long as the body is kept dry, 24V is a safe voltage and will not cause direct harm to the human body.
5. Both the control handle and the control box have emergency stop buttons. Himor brandstationary cargo scissor lift tables employ a double-safety configuration, allowing operators to choose the nearest emergency stop button to stop the equipment in the event of a sudden safety incident.
6. People can manually lower down the worktable by controlling the valve in case of a power outage. If a power outage occurs during operation of the cargo hydraulic lift table, and your load is still suspended in mid-air, don’t worry. You can manually control the valve to lower the worktable to the ground and resume operation once power is restored.

The above are the advantages of our product itself.

Below are some suggestions for users during operation:

**Operation Preparation Stage**

1. Please carefully read the operation manual prepared by China HimorMachinery to fully understand the performance and safety features of the fixed scissor lift produced by Himor.
2. Before starting operation, please check that the electrical and hydraulic system connections are intact, check that the fixed scissor lift pins are intact, and check for foreign objects in the equipment pit.

**Operation Stage**

1. Power on the equipment and confirm that it is using the correct voltage. Most of the scissor lift tables are 3 phase voltage input, which is more stable than single phase electricity.
2. Do not overload the goods; try to place the goods in the center of the worktable. Overload warning is a optional function of our lifts. If client needs this function, we are available to add.
3. Do not allow personnel unrelated to the operation to approach the equipment.
4. If any abnormality is found in the goods or equipment operation, please immediately press the emergency stop button to stop operation. After everything is checked and found to be normal, repeat the operation steps.

**Operation Completion Stage**

1. After finishing the cargo lifting up and down work, and after confirming that there are no foreign objects in the pit and no personnel under the worktable, lower the worktable to its lowest position and close the guardrail.
2. Disconnect the power supply.
3. If the equipment will not be used for an extended period, it is recommended to cover it to prevent dust, rainwater, etc., from entering and damaging the circuitry.

In summary, please choose professional, safe, and reliable manufacturers and products. After purchasing the equipment, carefully read the instruction manual and user manual. The above are suggestions from Himor Lift from a professional perspective. If you would like to learn more, we are happy to discuss with you and customize a suitable cargo scissor lift platforms for you.
