GLASS ROBOT
Glass robot is a moveable robot vacuum machine to solve glazing handling difficulty. We also name it as glass lifter, vacuum glass lifter, glass robot, and glass vacuum lifting equipment etc. With hydraulic system and vacuum system, people can use it holding on the glass and lift it easily for movement and installation. We can use this robot in many places like construction sites, buildings,plants, homes, workplaces etc. Choose from below models you mostly need for your job.
Himor factory price glass robot adopts intelligent and humanized control methods, and is easy to carry and install large pieces of glass. Its functionality, safety and humanized design have been fully reflected in the field of glass loading and unloading. We are top lift manufacturers in China. It is a combination of high efficiency, convenience and ergonomics. In the process of adsorption lifting, moving, handling and installation, it can effectively avoid the accidental injury of the glass or other materials to the operator.
- Lifting capacity: 300kg to 800kg
- Lifting height: 3700mm
- Usage: for sale
- Lifting power: DC Battery
- Walk power: DC Battery
- Suction Cups: 3 layer sealing ring silicone suction cups
- Lifting system: Hydraulic system
- Vacuum system: 2 lines vacuum system, each for half quantity pads.
- Wheels: back and front
- Outriggers: two sides steel outriggerswith wheels
- Movement:Light weight & Battery powered elf movement
- Boom Control bars Operation:Boom in and out, Side shift Left and Right, Boom up and down, Tilt up and down.
- Vacuum Control Operation: General power switch, Vacuum power ON/OFF, Vacuum Inhale, Vacuum Release
- Application: Handle different materials for movement and installation usage, such as glass, metal, building panels, granite, etc.

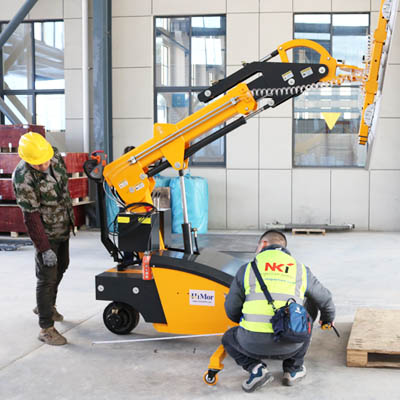

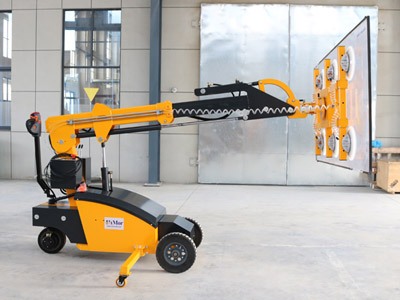

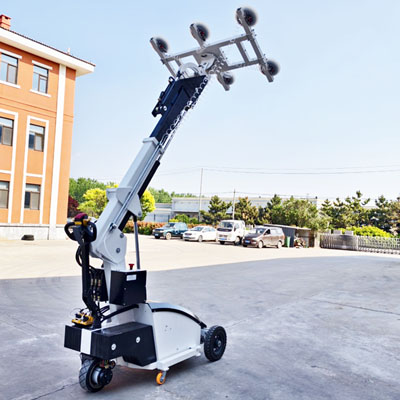

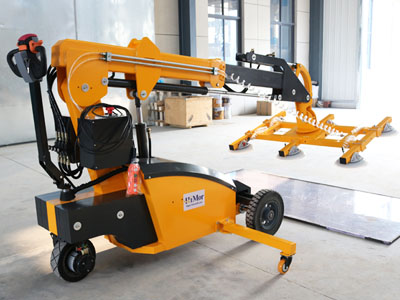

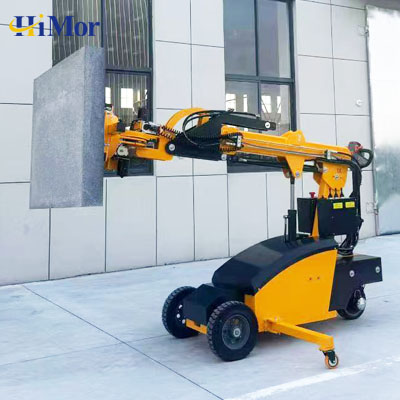

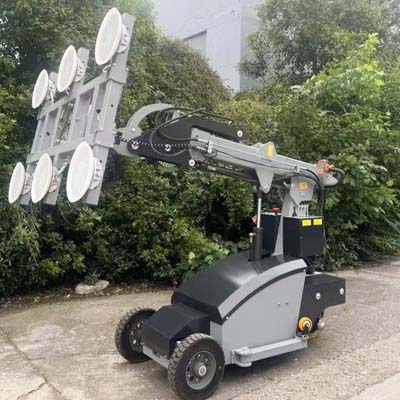

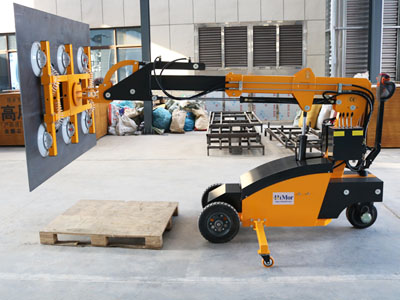

Glass Robot Multi-angle presentation and Models
|
Model
|
HL-LD-300
|
HL-LD-400
|
HL-LD-500
|
HL-LD-600
|
HL-LD-800
|
|---|---|---|---|---|---|
|
Capacity (Retract)
|
300kg
|
400kg
|
500kg
|
600kg
|
800kg
|
|
Capacity (Extend)
|
150kg
|
200kg
|
250kg
|
300kg
|
400kg
|
|
Lifting height
|
3500mm
|
3500mm
|
3700mm
|
3700mm
|
4500mm
|
|
Suction Cup
|
4pcs
|
6pcs
|
6pcs
|
6pcs
|
8pcs
|
|
Suction Cup Size
|
φ300mm
|
φ300mm
|
φ300mm
|
φ300mm
|
φ300mm
|
|
Manually Vertical Rotation
|
360 degrees
|
360 degrees
|
360 degrees
|
360 degrees
|
360 degrees
|
|
Manually Flip Horizontal
|
90 degrees
|
90 degrees
|
90 degrees
|
90 degrees
|
90 degrees
|
|
Maintenance-free Battery
|
2*12V/100AH
|
2*12V/100AH
|
2*12V/120AH
|
2*12V/120AH
|
2*12V/120AH
|
|
Lift Motor
|
24V/2KW
|
24V/2KW
|
24V/2KW
|
24V/2.2KW
|
24V/2.2KW
|
|
Drive Motor
|
24V/600W
|
24V/600W
|
24V/900W
|
24V/1200W
|
24V/1200W
|
|
Chassis L*W
|
2660*810mm
|
2660*810mm
|
2800*810mm
|
2800*810mm
|
2800*810mm
|
|
Driving Wheels
|
φ250*80mm
|
φ250*80mm
|
φ310*100mm
|
φ310*100mm
|
φ310*125mm
|
|
N.W/G.W
|
1100/1150kg
|
1280/1330kg
|
1300/1350kg
|
1400/1450kg
|
1600/1650kg
|
|
We design different colors and optional requests as per your request.
|
|||||
Why we produces better quality glazing robot vacuum lifter?
2 groups vacuum system

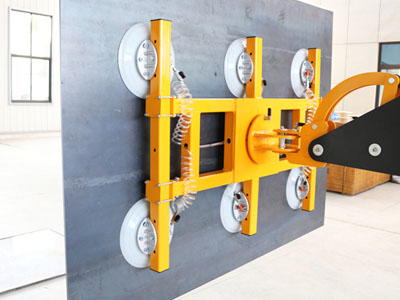

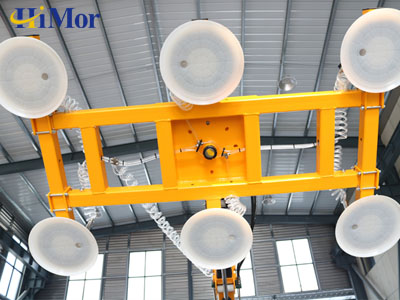

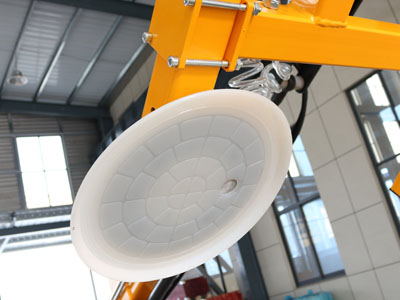

Silicone suction cups
Many types material available

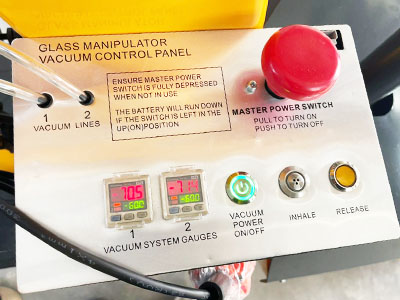

Vacuum safety controller

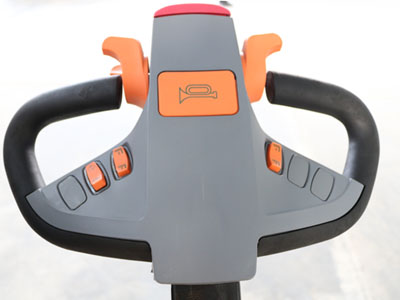

Walking guide controller

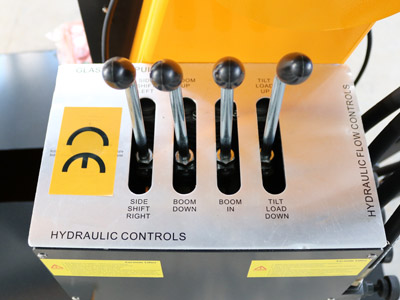

Boom adjusting bars

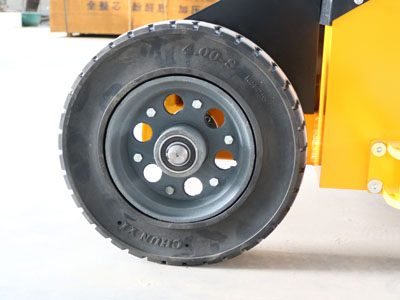

Solide wheels

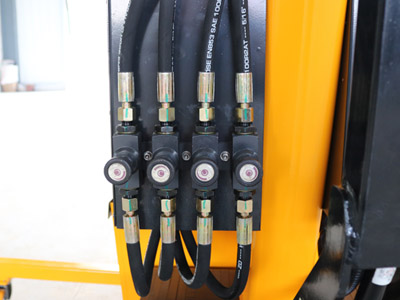

Safety hydraulic valves
Glass Robot Operation video
Glass Robot Operation video
- 12 months warranty after equipment is received, apart from man made faults.
- Abroad projects or customers for reference.
- 7*12 hours online/telephone/email technical consultation.
- Lifetime free technical consultation.
- Free spare parts for one years period.
- Shipping arrangement
Himor Glass Robot for sale FAQ
How much does glass robots for sale cost?
Himor glass robots are economic choice for material handling and installation. Galss robots only cost thousand dollars to ten thousand dollars according to the capacity. We are looking for dealers around the world.
How to move glazing robot vacuum lifter?
Himor brand glass vacuum lifter is self movement with battery power. So we only need to guide the walking direction during movement.
How to buy glazing robot vacuum lifter from Himor?
Himor has some agents in other countries. Or we can export to you directly. Please consult our saled team with your inquiry, and we will recommend you suitable models and guide you the purchase process.
How to choose vaccum lifter models?
There are different capacity models of Himor vacuum lifter. Please tell us what material you want to handle and their capacity, and sizes. Our professional sales team will tell you how to choose.
What height can Himor glass robot reach?
Our glass handling machine can reach both roof and ground. It is very flexible during the work.
Does the machine come to client by sea or air flight?
It can be delivered to other countries by both sea and air flight. We will pack it safe enough for long trip delivery.
