Vertical Hydraulic Wheelchair Lift for Home
Himor Lift manufactures high-quality vertical hydraulic wheelchair lifts designed to provide smooth, reliable vertical mobility for elderly individuals and people with disabilities. Engineered with advanced safety features, our residential wheelchair lifts are perfect for both indoor and outdoor installations, breaking down architectural barriers seamlessly.
Commonly referred to as a porch lift, handicap lift, or residential wheelchair elevator, these systems restore full independence to users. The wheelchair lift can be easily operated using an integrated cabin control panel, external landing columns, or a convenient remote control.
Whether you need an outdoor wheelchair lift for home use or a commercial-grade accessibility solution for a public building, Himor Lift delivers globally. Our products are trusted by clients in the United States, Australia, the Philippines, Poland, the Netherlands, Bahrain, and worldwide.
Where Can We Install a Wheelchair Lift?

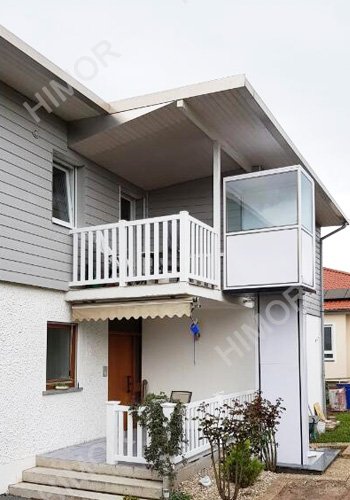

Residential Porches: Installed directly as a porch lift for seamless home access.
Outdoor Staircases: Positioned next to external stairs at a private residence

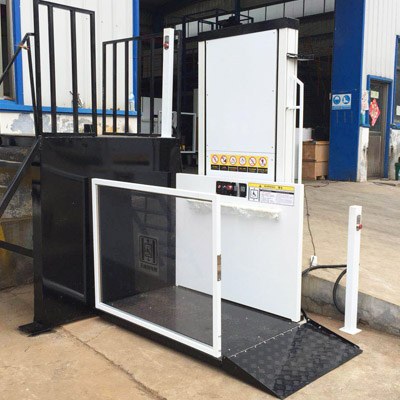

Commercial Entrances: Beside the steps at the entrance of an office or public building.

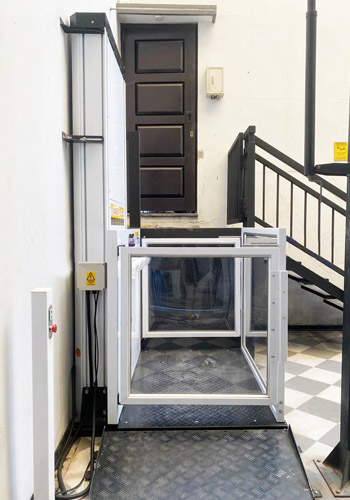

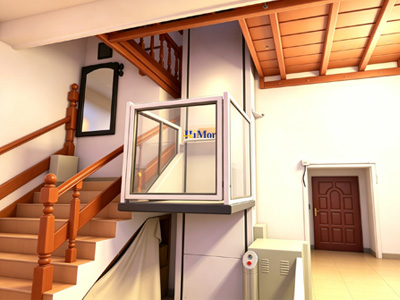

Indoor Floors: Configured to travel between floors inside a home or facility.
Himor Wheelchair Lift Technical Specifications & Customization Options
|
Feature
|
Specification Details
|
|||
|---|---|---|---|---|
|
Product Name
|
Vertical Hydraulic Wheelchair Lift
|
|||
|
Lift Application
|
Wheelchair accessibility; Elderly mobility; Residential passenger lifting
|
|||
|
Drive system
|
Silent Hydraulic Drive System
|
|||
|
Standard Cabin Size
|
900mmX1330mmX2000mm(can be customized)
|
|||
|
Load Capacity
|
250kg -400kg(can be customized)
|
|||
|
Cabin Lifting Height
|
1 meter - 12 meters (Tailored to your site layout)
|
|||
|
Cabin type
|

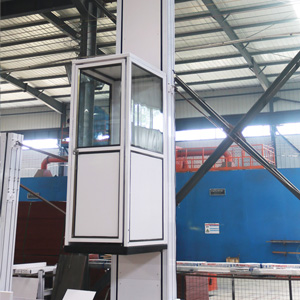

Half open cabin / Enclosed out frame (optional)
|
|||
|
Doors Type
|
Swing open doors on each access direction
|
|||
|
Landing gate
|
Optional choice for 1.2m height and 2m height
|
|||
|
Access design
|
Same single side/Get through/90 degree
|
|||
|
Lift Material
|
Cabin: Aluminum alloy & Glass / Drive tower: Alumninum alloy lead rail
|
|||
|
Safety Rules
|
1. All hydraulic safety valves 2. Emergency stop and lowering down 3. Safety touch board 4. All interlocked doors and gates
|
|||
|
Optional Choices
|
1. Backup UPS 2. Different color 3.Landing gates(manual/automatic) 4. Out glass frame
|
|||
|
Installation Requirement
|
Mounts directly on flat ground or inside a shallo pit / Fix drive tower with wall or steel structure
|
|||
|
Price Range
|
Budget-Friendly factory directly pricing (USD $3,000-$6,000))
|
|||
|
Other height, capacity, platform size, and opening direction can be customized as per your request.
|
||||
Safety Rules Of Himor Wheelchair Elevator
Safety is our top priority. Every Himor residential wheelchair lift comes equipped with multi-layered safety mechanisms to ensure peace of mind for users and caregivers:
Under-Platform Safety Sensor Board: Installed beneath the cabin, this sensor instantly halts downward platform movement if it detects any obstruction or object underneath the lift.
Anti-Drop Safety Device: Mechanical locks located inside the drive tower engage instantly to prevent the platform from falling in the event of a hydraulic pressure drop or chain failure.
Electromagnetic Interlocks: Integrated into the cabin and landing doors, these interlocks prevent safety gates from opening while the wheelchair lift is in motion or between floors.
Emergency Manual Lowering Valve: Located at the bottom of the drive tower, this valve allows operators or users to safely and manually lower the elevator during a building power outage.
Emergency Stop Buttons: Positioned on all controllers (inside the cabin and outside on the control columns) to instantly stop all motion when pressed.
Inside cabin control panel with each stop buttons and E-stop button.
Outside control posts with E-stop installed on each floor ground.

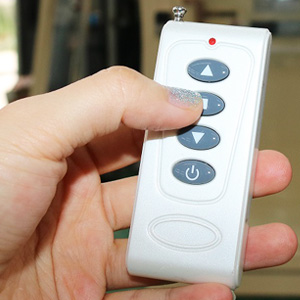

Remote control of the lift enhances the convenience for passengers.
The intelligent PLC board can tell us the cause of the malfunction.
Efficient & silent hydraulic pumping station with all safety valves.

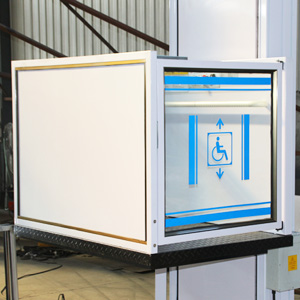

Half open cabin with glass doors (plate or full glass are available).

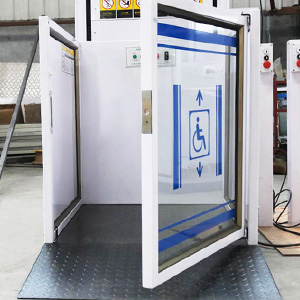

Manual open folding doors equipped on each access direction.
Landing gates are optional choice with glass design and controllers.
Safety manual down valve on one side of lift drive tower.
Safety touch board under the cabin.(stop when meet obstacles)
Himor Vertical Hydraulic Wheelchair Lifts projects Show
Project in Africa
Project in Bahrain
Project in US

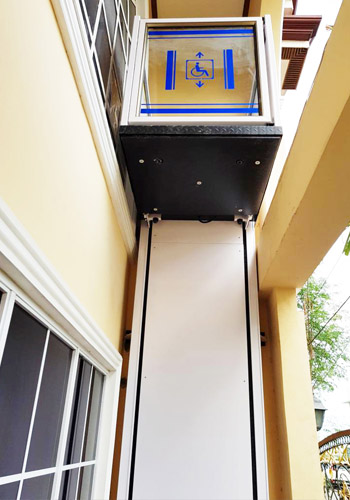

Project in The Philippines

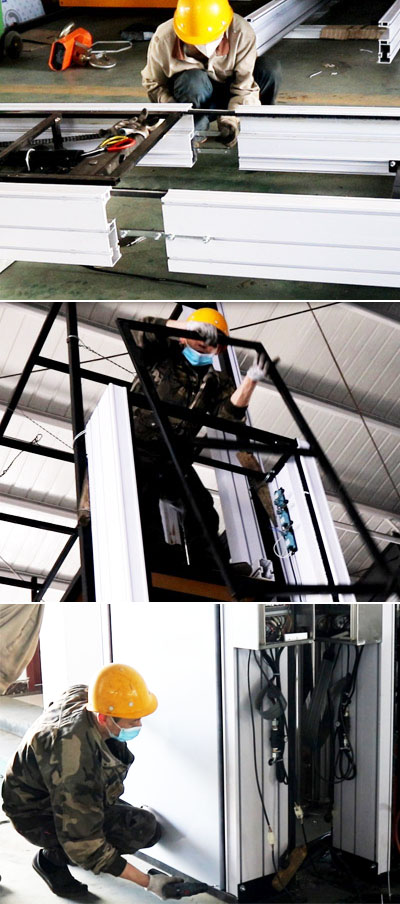

How to install a Vertical Wheelchair Elevator?
Note: Proper site preparation ensures a smooth installation process. Please review these steps before your lift arrives.
Prepare the Base: Confirm the installation site is fully concreted with a minimum depth of 100mm.
Structural Support: Ensure the lift will be positioned next to a solid wall or steel structure for secure fixing.
Pit Drainage: If you opt to dig an installation pit, ensure proper drainage is in place to prevent water accumulation.
Assemble the Drive Tower: The drive tower may be shipped in two parts for safer delivery; securely bolt them together inside the lead rails.
Position and Level: Place the lift onto the installation site and ensure it is perfectly vertical.
Secure the Tower: Fix the drive tower to the wall or steel structure using the provided triangle brackets and bolts.
Anchor the Base: Secure the drive tower to the ground or pit floor using heavy-duty bolts.
Install Landing Doors: Securely fix the landing doors on the upper floors (if included in your configuration).
Wiring and Fluid: Connect all electrical wires using the pair-plugs, fill the hydraulic tank with oil, and connect the main input power.
Unloaded Test Run: Test the wheelchair lift moving up and down using the cabin controls, external columns, and remotes. Ensure no one is inside the cabin during this initial test.
Safety Feature Test: Verify the functionality of the under-platform safety sensors, emergency stops, cabin doors, and landing door interlocks.
Final Commissioning: Once all safety tests are successfully completed, the lift is ready for passenger use.
How to operate Himor wheelchair lift
We do test before delivery
How to buy wheelchair lift from China Himor Lift?
Send your site photos, installation dimensions, and required cabin travel distance to the Himor team.
2. Custom Engineering & Design
Himor will create precise 2D or 3D drawings to ensure the wheelchair lift perfectly matches your site specifications.
3. Detail Optimization
We discuss and finalize all design details, payment terms, production timelines, and delivery logistics.
4. Order Confirmation
Secure your production slot by settling the agreed-upon advanced payment.
Himor prepare production drawing & material & production schedule.
6. Production & Quality Testing
Your lift is manufactured and undergoes rigorous factory testing prior to shipment.
7. Final Payment & Logistics
Once production is complete and approved, the client fulfills the balance payment.
8. Global Ocean Freight Delivery
Himor safely packages and dispatches your residential wheelchair lift by sea to your designated destination.
Wheelchair lifts FAQS
What are the site requirements for an residential wheelchair lift?
- the installation ground should be concreted, and concreted depth should be minimum 100mm–150mm.
- the lift requires a structural load-bearing wall to fix the drive tower. The wall should be concreted wall, steel structure, or other firm material structure.
What happens if a hydraulic wheelchair lift loses power while someone is inside?
Himor has 2 solutions for this situation.
Firstly is our standard configuration—-manual lowering down valve. It is equipped on the drive tower, which people outside the cabin can lowering down the cabin by manual. This function needs a second person to operate.
Secondly is our optional configuration—-Backup battery power device(UPS). If client choose this optional device, when electricity is out, this UPS will start to work and passenger can lower down successfully. This do not need a second person to operate.
What weather and environment can Himor hydraulic wheelchair lifts stand?
- the hydraulicsystem can work in these climates like -30 degree cold weather or +50 degree hot weather
- Himor uses thick steel inside structure to make sure the lift inside is durable enough
- we use 6063 type aluminum alloy for drive tower and cabin which is durable in extreme weather and been not rusted or out of shape.
How much does a hydraulic wheelchair lift from China cost?
The price for a high-quality, certified hydraulic wheelchair lift manufactured in China generally ranges from $3,000 to $6,000 USD.
The final cost depends on several customizable factors, including:
Lifting Height: Higher travel distances require robust hydraulic systems.
Safety & Power Options: Add-ons like emergency UPS backup power.
Structural Enclosures: Optional outer frames, shafts, and automatic landing doors.
What Are the After-services?
- Himor provides 2 years warranty fot the lift structure and 1 year warranty for electrical components.
- Himor provids detailed installation manual and user manual for each lift. We also help with installation by online assistance.
- We also provide whole life time free consult for the lift issue.
