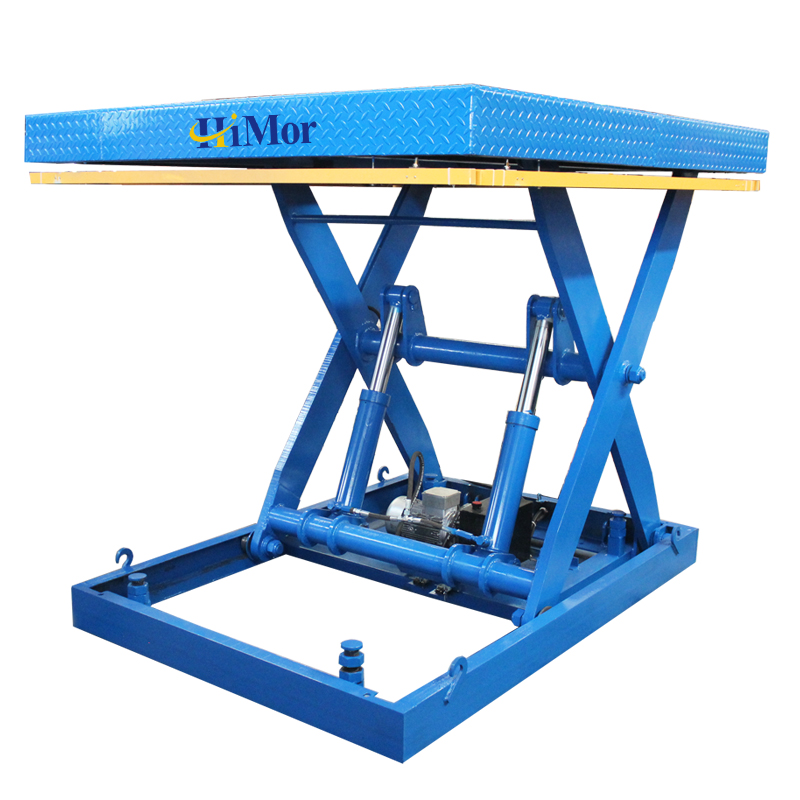

SCISSOR DOCK LIFT
Scissor dock lift here we means hydraulic scissor lift table for cargo loading and unloading. We can design hydraulic lift tables capacity from 100kg to 100ton. As loading dock scissor lift, its application is in large range like warehouse, docks, plants, workshops, and shops etc. This hydraulic lift table is OEM type lifts and we can customize all specs according to your request. More questions, please review the FAQs in the bottom.
- Height: suggest 0.5m-5m (1.6ft-16ft)
- Capacity: 100kg-100ton
- Platform size: all sizes can be customized
- 3D drawing provided
- Hydraulic system
- Multi-layers waterproof controllers
- Low profile is available
- All sizes customization.
- Prices: from USD2,000~USD30,000. Depending on sizes.
Loading Dock Scissor Lift Platform Projects and Reference Models
|
Model
|
Lifting Height
|
Capacity
|
Platform Size
|
Lead Rails
|
|---|---|---|---|---|
|
HSL0.5-1
|
1.0m
|
500kg
|
1.2m*1.5m
|
One Scissor Layer
|
|
HSL1-1
|
1.0m
|
1000kg
|
1.5m*1.8m
|
One Scissor Layer
|
|
HSL1.5-1.5
|
1.5m
|
1500kg
|
1.5m*2.0m
|
One Scissor Layer
|
|
HSL2-1.5
|
1.5m
|
2000kg
|
2.0m*2.5m
|
One Scissor Layer
|
|
HSL3-1.2
|
1.2m
|
3000kg
|
1.5m*3.0m
|
One Scissor Layer
|
|
HSL10-1.5
|
1.5m
|
10000kg
|
2.0m*3.0m
|
One Scissor Layer
|
|
Other height, capacity, platform size can be customized as per your request.
|
||||
What We Do To Make Qualified Hydraulic Low Profile Scissor Dock Lift Table?
Options for Scissor Dock Lift Tables
Scissor Lift Table on Wheels
Frame with forklift pockets
Barrier Guardrails
Loading Flap
Remote Controller
Roller Bed
Rise and Tilt
Circular Turntable
Rectangular Turntable
Safe Bellow Curtain
Scissor Dock Lift video
After Service Support
Dock Scissor Lift Platform FAQ
Yes. This lift only needs to put on ground and fix by bolts.
Nomrally speaking, it needs to be put in a pit. If you do not want to dig pit, we can design low profile type scissor dock lift.
After knowing the lift lifting height, platform size and capacity you need, we will make design and start order with you. We accept T/T, Paypal, Credit card, and L/C payment methods.
Himor also can arrange shipment to your nearest sea port.
Normally need 20-30 days.
- Himor provides 3 years warranty fot the lift structure and 1 year warranty for electrical components.
- Himor provids detailed installation manual and user manual for each lift. We also help with installation by online assistance.
- We also provide whole life time free consult for the lift issue.
- Enclosure. We produce many types enclosure for scissor lift tables. Like wire mesh enclosure, steel plate enclosure, PVC cover, and color steel tile enclosure etc.
- Landing gates. If you need landing gates to fix on floors, we produce as per your request. Like wire mesh manual open doors, electric roller shutter doors, and center open accordion doors etc.
- Other optional confirgurations, please discuss with Himor team.
