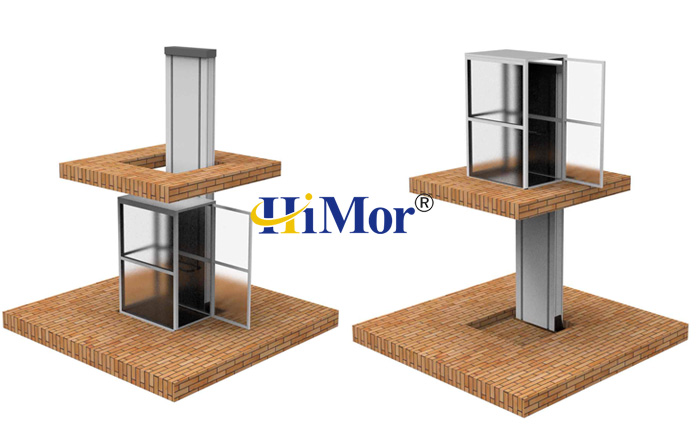

The Himor full cabin outdoor wheelchair lift is one of our standout hydraulic lifts products. Building upon the standard wheelchair lift design, we’ve enhanced it by creating a fully enclosed cabin version, equipped with all necessary safety features. Also we have full enclosed frame type platform lift similar to home elevator for your choice. Do you want to explore what we have? Below are the six main advantages of this innovative lift.
1. Weatherproof Design
The Himor outdoor wheelchair lift can be installed in any weather conditions, whether it’s rainy, snowy, hot, or cold. Let’s break this down further:
Lift Structure: Unlike traditional iron structures, the lift’s frame is primarily made from aluminum alloy, which is highly durable, waterproof, and resistant to rust.
Cabin Design: The lift features a fully enclosed cabin made of aluminum alloy and glass. This means users can safely use the lift even in rainy weather, and the large glass windows offer a beautiful view while traveling.
Controllers: There are three types of controllers for convenience: an external stainless steel control column, an internal control panel with digital features, and a remote control. The external controller is also waterproof, and the entire system is housed within a stainless steel box for added protection.
2. Energy-Efficient Hydraulic System
Our lift uses a hydraulic system powered by a pump station with hydraulic oil. The oil is reusable, requiring replacement only once every six months, making the system energy-efficient and cost-effective for long-term use.
3. Customizable Sizes
The Himor full-cabin lift can accommodate 1-3 people. Or one wheelchair and one people. The standard cabin size is 900mm by 1330mm. However, if your installation site has specific requirements or limited space, we can customize both the lift and cabin sizes. For example, even if you have a space of 1 meter by 1 meter, we also can make a lift to fit this space. Some clients install our lift in their house where there is a staircase around. So the middle of the stair case is very tight. We also can design a small lift for that situation. Additionally, if the lift is designed to pass through a floor, we will tailor the dimensions to match the size of the floor opening.
4. Comprehensive Safety Features
Anti-Drop Device on the Chain: To ensure the safety of the cabin, we’ve integrated a chain anti-drop device. If the chains were to break, the device will securely hold the cabin in place.
Safety Sensor Board: For added protection, the lift is equipped with a safety sensor board beneath the cabin. If any obstacles are detected, the cabin will automatically stop descending to prevent accidents.
Emergency lowering: Sometime you will meet electricity runs out, then you can use our emergency lowering button to down the cabin. Also we have paid optional choice like battery backup UPS. Which means when the electricity is out, then the UPS will work immediately and let the cabin down to ground floor.
Emergency stop button: No matter what the situation is, as long as passengers want to stop, they can press the emergency stop button. The equipment will stop running immediately.
5. Affordable outdoor wheelchair lift Cost
Himor’s vertical platform wheelchair lifts are designed to be economical, making them accessible to a broad range of customers. The price for a full-cabin outdoor wheelchair lift price is typically from USD 3,500 to USD 8,000, depending on the required lifting height. Also the shipping cost is not high because we can pack the lift into plywood cases then deliver out by LCL. To most countries, the LCL cost is also affordable. For wheelchair lift agents, one 20 feet container can load 3-4 lifts and a 40 feet container can load more than 8 lifts.
6. Easy Installation
We understand that installation can be a concern for end users. To assist with this, Himor provides clear and detailed installation instructions. All the prepare work and installation process are included with words and photos. You just need to follow each step and find some workers to do it. With the help of 2-4 workers, the lift can be installed efficiently. Besides the lift structure, we also make the electric wires pair plug type. You only need to insert the pair plugs together. Additionally, in certain countries, we have trusted partners who can assist with both the importation and installation processes.
Conclusion
If you have any further questions about our vertical platform lifts—such as lower cost choice, adding manual or automatic landing doors, customizing the external glass frame, or changing the lift’s color—our sales team is happy to assist you. We are also open to agents all over the world. We sincerely welcome agents like elevator engineering companies, elevator install companies, construction companies, trading companies etc. Contact us for quick and detailed answers. Here is our detailed introduce of our outdoor wheelchair lift>>
