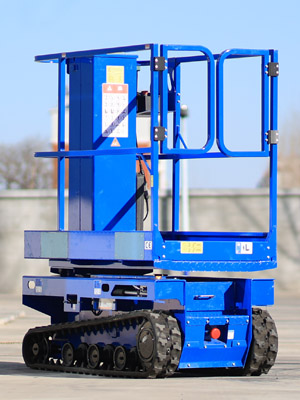

Tracked Mast Lift
5.8m working height & 0.79m width & Track drive
Himor small tracked mast lift is a compact, tracked, self-propelled, all-terrain manned aerial work platform. It can rotate in place, occupying minimal space, allowing for aerial lifting operations even in extremely narrow spaces. The crawler mast lift can travel on various terrains, and the non-marking tracks protect the ground from damage. The equipment requires only one operator. The operator can achieve precise control via a proportional control system, enabling accurate positioning during delicate operations. Applications include indoor and outdoor installation, maintenance, decoration, and painting work at height.
- DC power for Driving and Lifting
- Proportional Controls
- Zero-radius Turn
- Track Driving Motor
- Automatic Brake System
- Emergency Lowering System
- Emergency Stop Button
- Cylinder Holding Valve
- Onboard Diagnostic System
- 200kg lift capacity
- 25% Gradeability

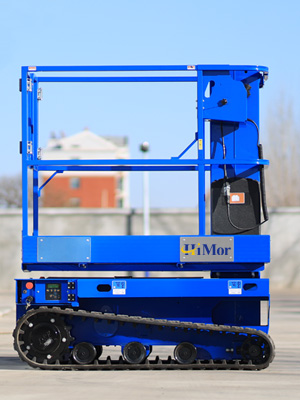

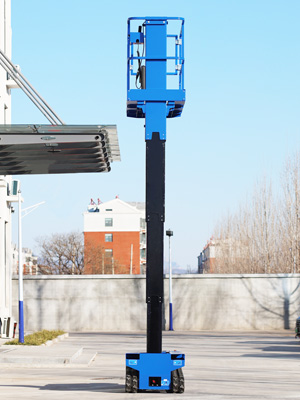

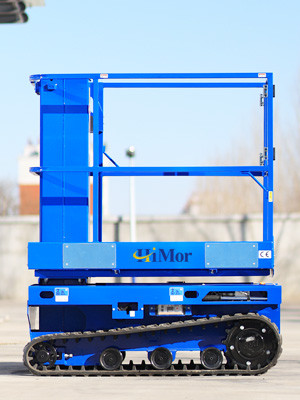

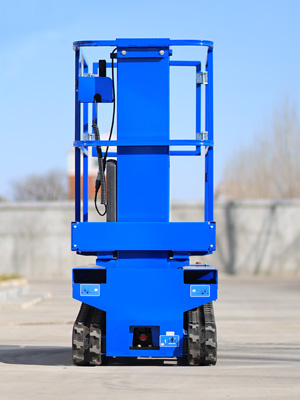

Tracked Mast Lift Photos
Tracked Mast Lift Specification
|
Details
|
HOL4C-6100
|
|---|---|
|
Max. Platform heiht
|
3.8m
|
|
Max. Working height
|
5.8m
|
|
Load Capacity
|
200kg
|
|
Max. Occupants
|
2
|
|
Overall Dimension
|
1.44X0.79X1.8m
|
|
Platform Size
|
1.4X0.75m
|
|
Ground Clearance
|
60mm
|
|
Turning Radius
|
Zero
|
|
UP/DOWN speed
|
32/31sec
|
|
Gradeability
|
25%
|
|
Track
|
150mm
|
|
Driving Motor
|
2X24VDC/0.9KW
|
|
Lifting Motor
|
24VDC/2.2KW
|
|
Battery
|
2X12V/100Ah
|
|
Charger
|
24V/15Ah
|
|
Self Weight
|
740kg
|
What We Do To Make Qualified Tracked Mast Lift?

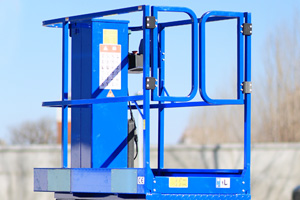

Compact working platform with manual open door.

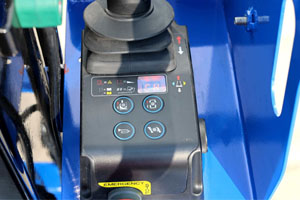

Self propelled controller can drive the lift at all heights.

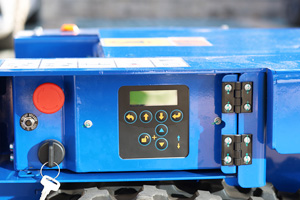

Ground Controller

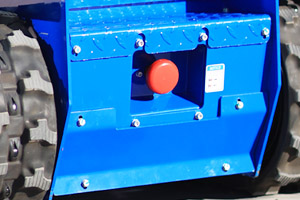

General power switch

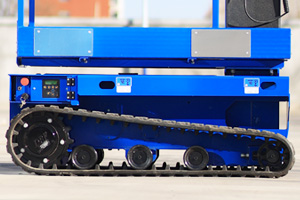

Track with motor for various complex terrians

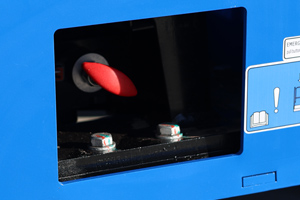

Emergency lowering switch

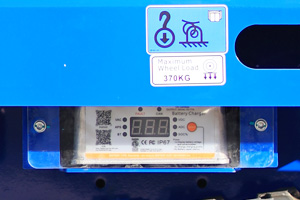

DC battery indicator

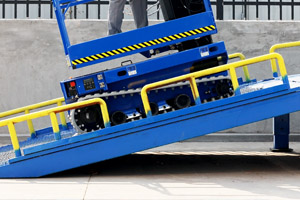

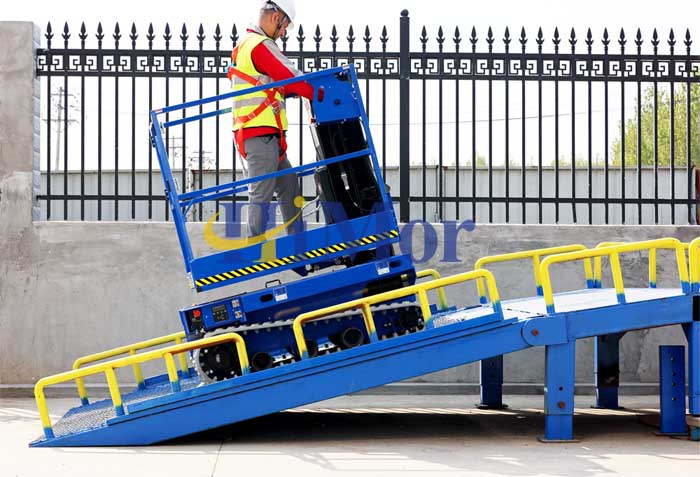

25% Gradeability

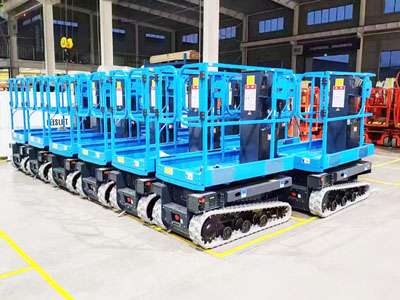

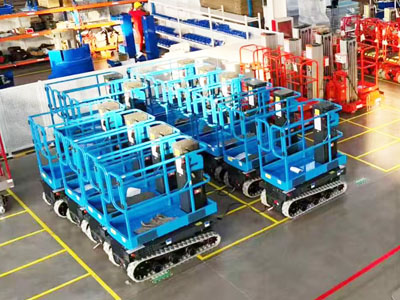

Small Traced Vertical Mast Lift Factory
Tracked Vertical Mast Lift video
After Service Support
- 12 months after client receive the lift, apart from man made faults.
- 7*12 hours online/telephone/email technical consultation.
- Lifetime free technical consultation.
- Free spare parts for one years period.

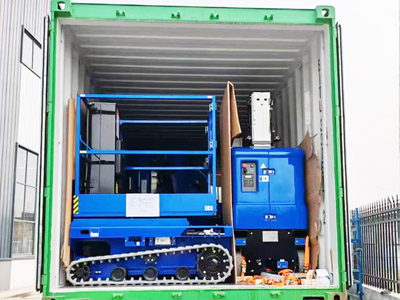

- Shipping arrangement
Crawler Mast Lift FAQ
1.What is the gradeability of the tracked man lift?
The lift’s gradeability is 25%.
2.What does “zero-radius turn” mean?
It means the lift can turn around without any radius. This is to occupy minimal space in the working sites.
3.What can we do if the lift’s battery runs out?
There is emergency lowering down function on the lift bottom. People around can stretch the emergency lowering bar to make it down safely.
4.What is the travel speed of this lift when it is stowed and raised?
It’s travel speed is 2.2km/h when stowed and 0.8km/h when raised.
5.What is the tracked vertical mast lift up/down speed?
It is 31/32 seconds.
6.What are the tracked man lift safety measurements?
There are automatic brake system, emergency stop button, emergency lowering system, and cylinder holding valve to ensure safety for the workers. Also we have full safety labels on the machine to remind people who use it.
7.What size of door opening can the lift pass through?
The lift size is 0.79m width by 1.8m height, so it can go pass door opening 0.8m width by 1.9m height.
8.With the crawler, can the lift go accross complex terrians?
Yes. There is tracked motor to drive the lift on various complex terrians steadily and safely.
