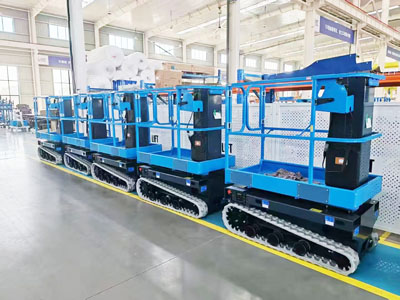

Tracked vertical mast lift is a special aerial work platform that combines a tracked chassis with a vertical telescopic mast. It integrates all-terrain capability, vertical lifting, compact size, flexibility, safety, and stability, and is mainly used for aerial work in narrow indoor and outdoor spaces and can drive on complex terrain.
The entire machine mainly consists of four parts: the tracked chassis(crawler), the telescopic mast, the personnel work platform, and the support and safety system. The following is a detailed description of these four parts:
1. Tracked Chassis
Uses rubber tracks, providing a large ground contact area, low pressure, ground protection, and anti-slip/anti-sinking properties. It can achieve zero-radius turning on the spot, has strong climbing ability (up to 25° slope), and is adaptable to complex road conditions such as mud, potholes, slopes, and steps.
2. Telescopic mast
Composed of multiple nested telescopic boom sections, it is driven vertically by hydraulic cylinders. Smooth lifting, high structural rigidity, and strong lateral stability; compared to scissor lifts, it occupies minimal horizontal space. Some models are equipped with a boom/extension platform for horizontal extension and obstacle crossing.
3. Work Platform
Manned work platform equipped with folding guardrails for easy passage through low doorways. Maximum load capacity is generally 200KG. Supports 360° rotation in place and proportional control for precise and stable operation.
4. Support and Safety System
Overload protection, emergency descent, tilt alarm, height limit, and anti-slip braking.
Main Performance Characteristics of Tracked Self-Propelled Telescopic Platforms:
Compact and compact: Narrow body (≤0.8m), can pass through standard doors (80cm), suitable for narrow corridors, elevators, and indoor construction.
All-terrain adaptability: Tracked design allows operation on muddy, soft, and rugged surfaces; suitable for outdoor construction sites, gardens, and mountainous areas.
Vertical efficiency: Primarily lifting with secondary horizontal extension, suitable for vertical inspection, installation, and painting in factories, warehouses, stadiums, and exterior walls.
Environmentally friendly and quiet: Battery-powered with no exhaust fumes and low noise, suitable for hospitals, shopping malls, hotels, theaters, and other places with high environmental requirements.
Safe and stable: Low center of gravity, high rigidity, leveling outriggers, multiple safety locks, wind resistance and stability superior to wheeled equipment of the same height.
Specifications of the tracked self-propelled telescopic platform (for reference):
· Working height: 5.8m
· Platform height: 3.8m
· Platform load capacity: 200kg
· Overall width: 0.79m
· Travel speed: 2.2 km/h when retracted; 0.8 km/h when raised
· Lifting/lowering speed: 32/31 seconds
· Continuous operation: 6–8 hours with battery power
Climbing ability: 25% The tracked self-propelled telescopic platform better solves the problem of lifting operations in indoor and outdoor spaces and confined spaces where noise levels are high. The following are typical application scenarios:
Indoor high-altitude: Shopping malls, supermarkets, theaters, exhibition halls, factories, logistics centers, data centers—inspection, installation, maintenance, fire protection, painting. Tracked self-propelled telescopic boom platforms are the “all-terrain vertical experts” among aerial work platforms:
Advantages: Narrow body for flexibility, all-terrain capability, high vertical efficiency, safety and stability, environmentally friendly and low noise.
Positioning: A vertical lifting solution suitable for both indoor and outdoor use, ideal for complex terrain, and preferred for confined spaces.
Compare tracked mast lift & wheeled mast lift & tracked scissor lift
| Compare perspectives | Tracked vertical mast lift | Wheeled vertical mast lift | Tracked scissor lift |
| Walking Ground adaptability | All terrains | Only hard ground | All terrains |
| Footprint area | small | small | big |
| Horizontal working scope | small | small | medium |
| Lift width | smallest | small | medium |
Buying guides for tracked vertical mast lift
Especially suitable for aerial working platform rental company, who can buy and rent to others. It is a better choice for self drive lifts and also can work in very narrow places. When electric scissor lifts are too big, this type lift can fill the gap. And it is also suitable for property management, engineering, landscaping, stadiums, industrial maintenance, and other users.
To know more specifications about Himor tracked vertical mast lift, please read from our product page>> Tracked vertical mast lift
